Single Patient Use Powered Endo Cutter and Reload

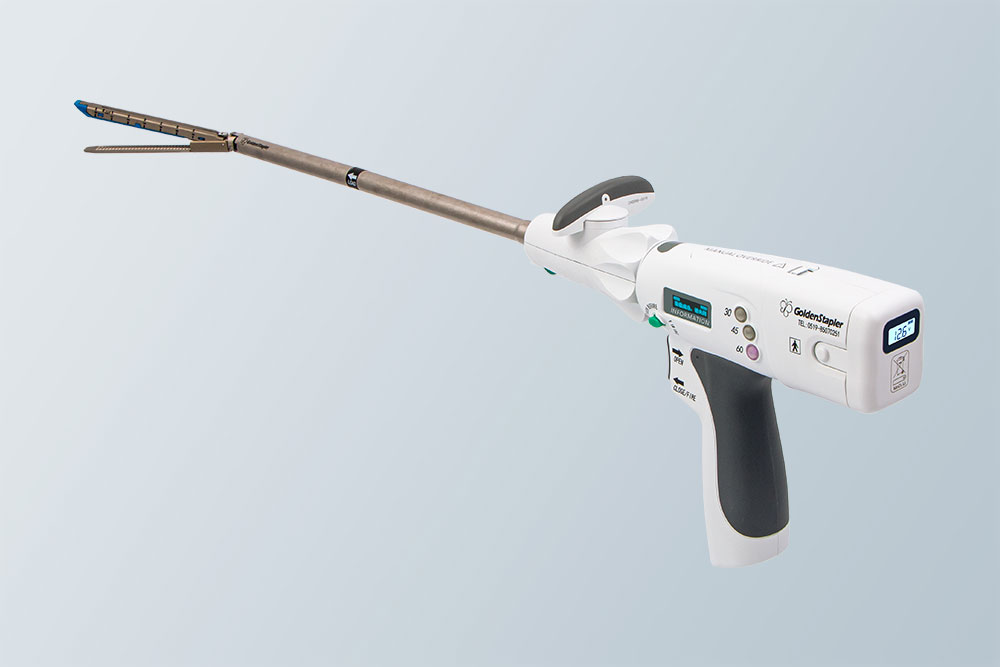

e-Golden Single Patient Use Powered Endo Cutter (MDR Approval)
- Introduction
- Features
- Videos
With the development of surgical techniques, more and more doctors are adopting minimally invasive methods to perform routine surgeries. Single patient use powered endo cutter and reload applies to the resection, transection and creation of anastomosis of tissues in abdominal, gynecological, paediatric, pulmonary and esophageal laparoscopic/endoscopic surgical procedures (except for central circulatory system).
Simplicity
● Cartridge reload can be rotated in 45°at both left and right sides, adjusted to the appropriate angle to operate

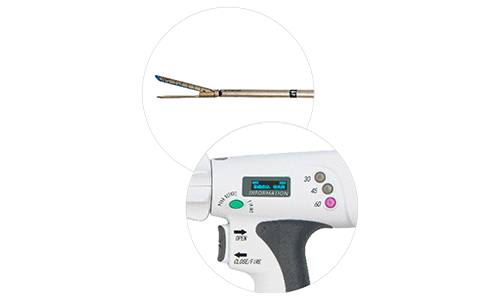

● Manipulation for closing and firing with single hand
Reliability
● OSF Protrusion on reload surface, balanced compression of tissue during clamping and firing, guide staples accurately arrive on the anvil, provide consistent staples formation, good hemostasis
● Optimized bowknot shape anvil pocket, work with OSF Protrusion, guide staples into B formation
● In case of unexpected motor failure to return the cutting knife and cutting knife reverse button malfunction, manually pull back the cutting knife and open the jaws, guarantee surgical safety
● Safety device prevents firing the empty cartridge reload
● Dynamic firing offers optimized firing effect, better compression of thick tissue, and the jaw is stable and does not affect the tissue during firing
Flexibility

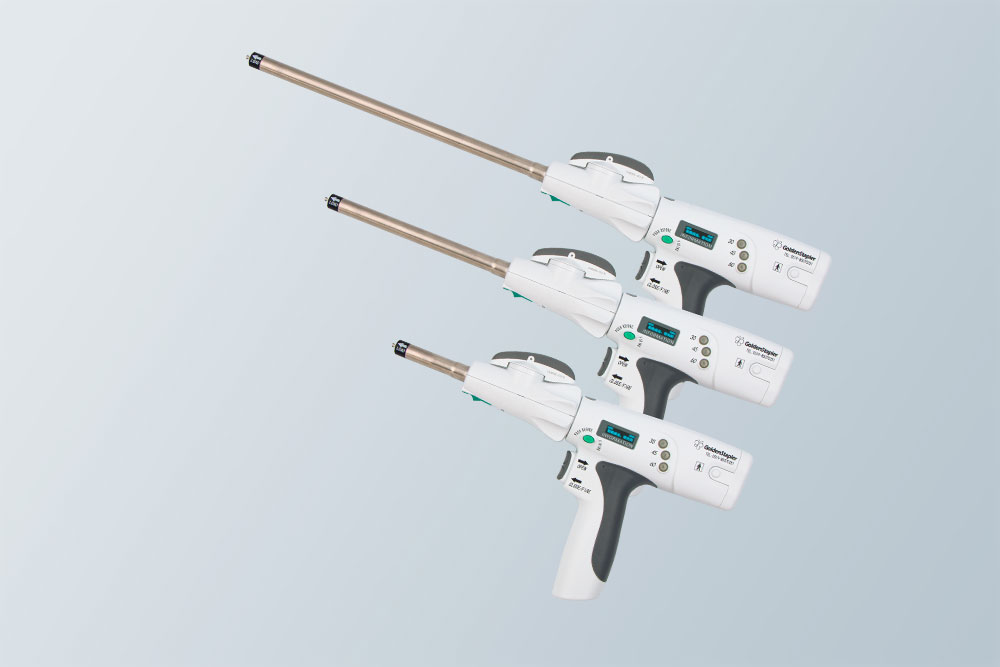

● Three different lengths of hand piece for different surgery situation

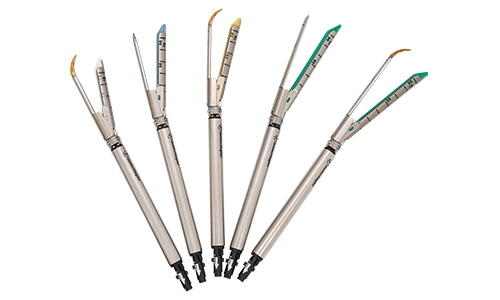

● Different color reloads to meet the needs of stapling tissues of different thicknesses
In situ clamping, tension-free cutting and stapling
Safer, more reliable, and simpler
Less tissue leakage and more tissue stapling
More reliable for unevenly thick and thin tissues

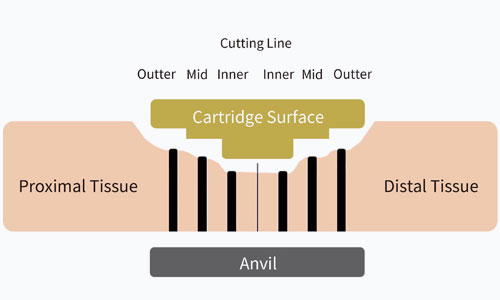

Unequally stepped closed staple heights Release 6 rows of staples when firing, and cutting knife through the middle
Unequally stepped closed staple heights design, the pressure on the tissue decreases in a gradient from the inside out
Good blood supply at the anastomotic site and good hemostasis at the cutting edge
More in line with Halsted surgical suture principle
Save money, time and storage space
More intelligent, safer and more reliable

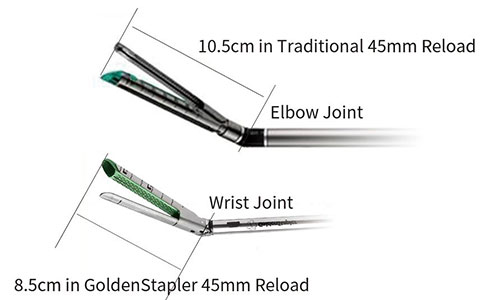

Compared to elbow joint, capable of entering the deepest pelvic position
Cross the rectum in a nearly vertical position to ensure a more successful low anterior resection
All size of reloads are available for 12mm trocar
Each replaced new reload includes staple, anvil and cutting knife
Comply with tumor-free principle
Non damaging pre clamping force, versatile, single hand operation
Empty staple protection to avoid catastrophic risks of only cutting without stapling
The staple line is 4.5mm longer than cutting line, and the end suture has good hemostasis
Voltage display decreases, torque increases
Better compression of thick tissue
Cutting and stapling tissue at a constant speed
The jaws is stable and does not affect the tissue during firing
The device application video shown here is not used as a surgical skill training guide. Doctors can treat differently in different procedures, according to the actual clinical situation, their own clinical experience and use preference,
Before using this demonstrative product, please carefully read the product Instructions for Use, indications and contraindications, check the integrity of all devices and accessories in the package, and use them correctly according to the Instructions for Use, to avoid adverse consequences.
